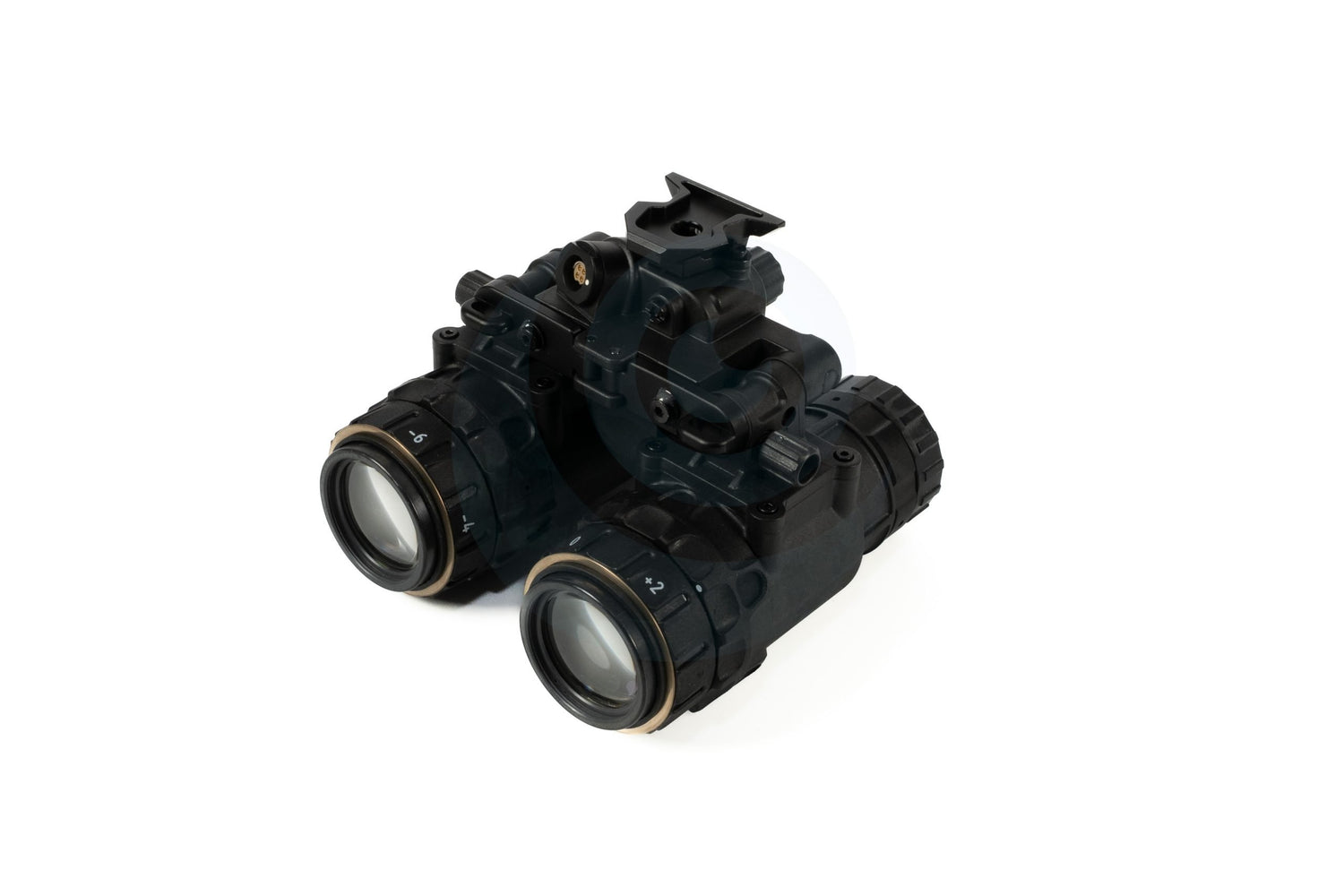

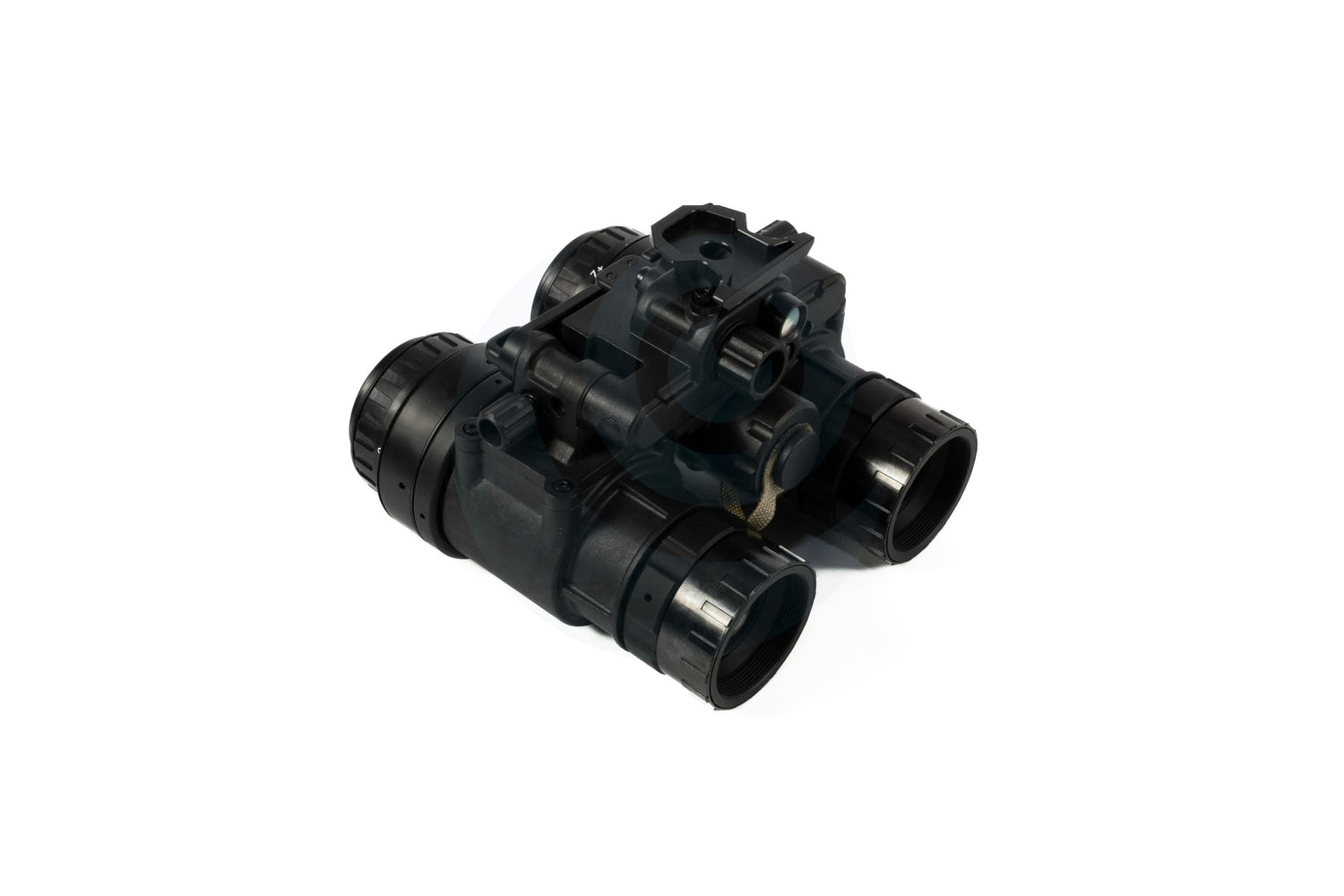

Aeon Night Vision Binocular

The Aeon Night Vision Binocular (ANVB) is the newest night vision binocular on the market!

The ANVB offers EVERY feature customers want – articulating manual gain with built in IR, IPD stops, independent pod on/off, external battery port and a 10 year warranty.

The skeletonized design features a single rotary switch for power that also serves as manual gain adjustment. The Dual Focus IR illuminator is activated by pressing the power switch twice. The user can select between Flood and Spot when using the IR illuminator. Indicators in the viewing area alert the user if the IR illuminator is on, or if the unit senses a low battery condition.

The unit is powered by either an onboard 123 battery or auxiliary power from a battery pack using a Fischer style connector. The ANVB has an automatic system power cutoff whenever the ANVB is flipped up into the helmet mounted stow position, and then powers back on when it is flipped back down. This feature can be turned on or off depending on user preference.

Unlike the 1431 MK2, the ANVB pods turn off automatically when each is articulated up and turn back on when articulated down. This feature prevents illumination on your helmet when one side is articulated up and ensures that the image intensifiers are ‘off’ in the stowed position with the optical pods folded back against the helmet.

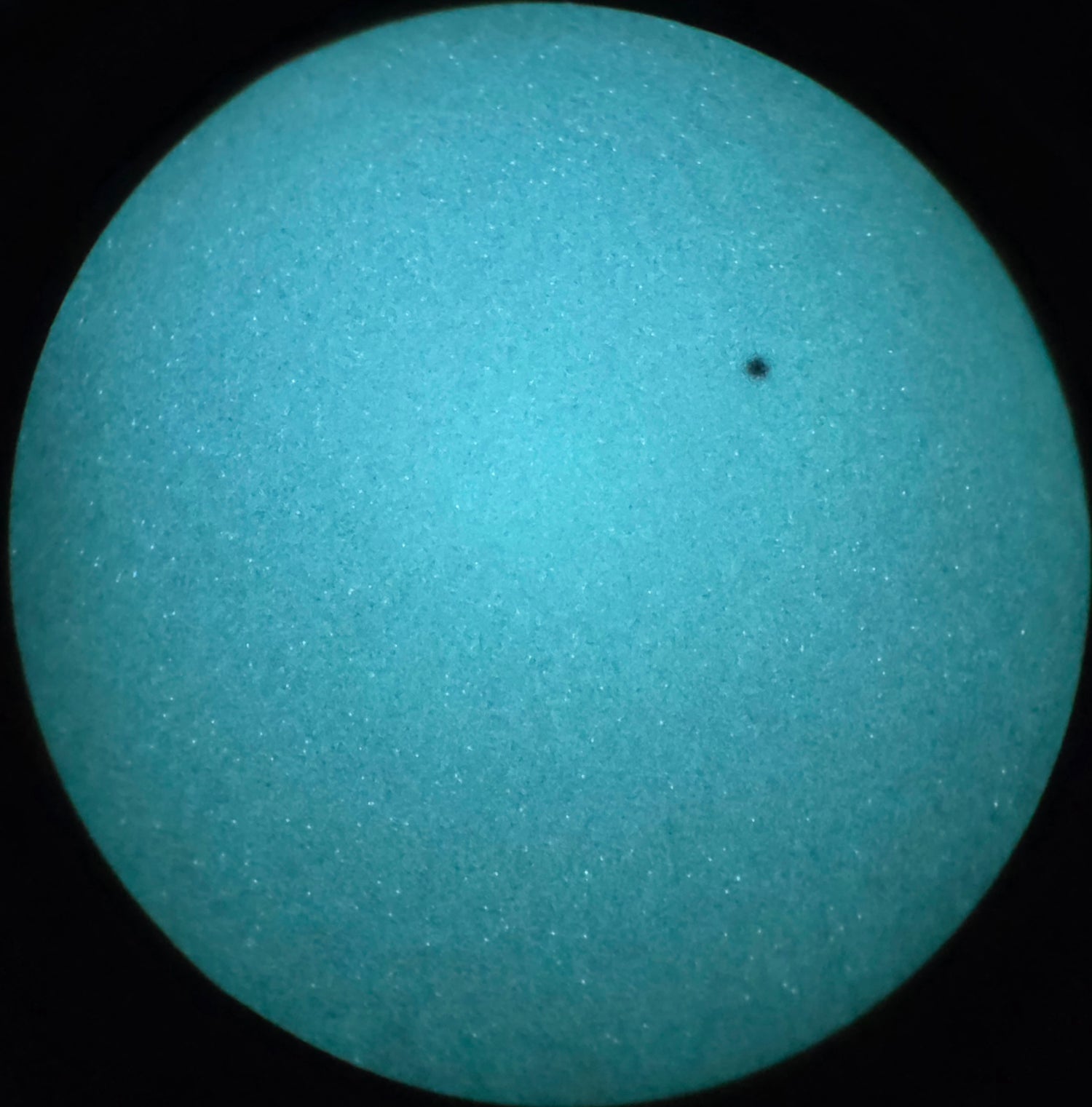

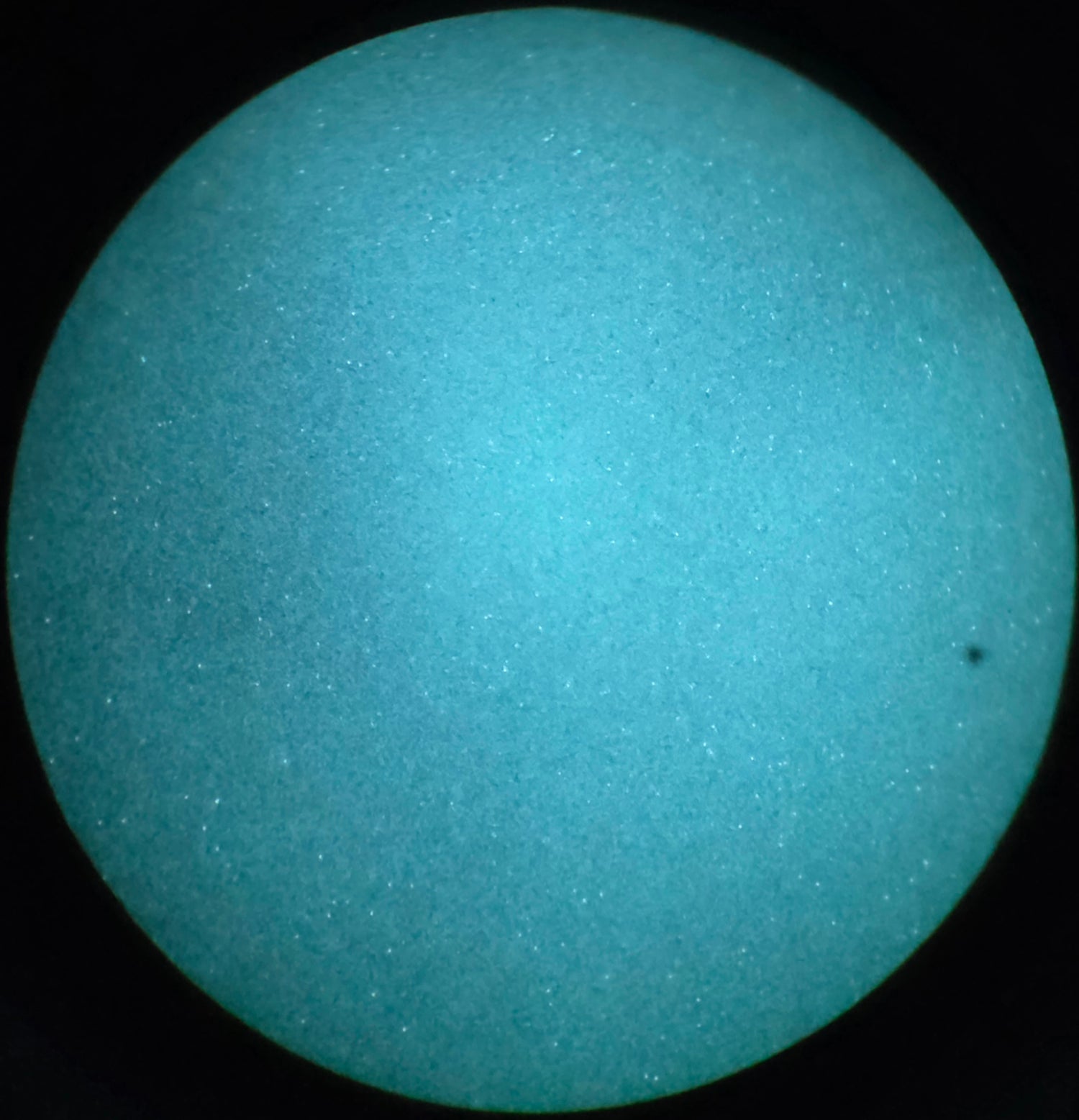

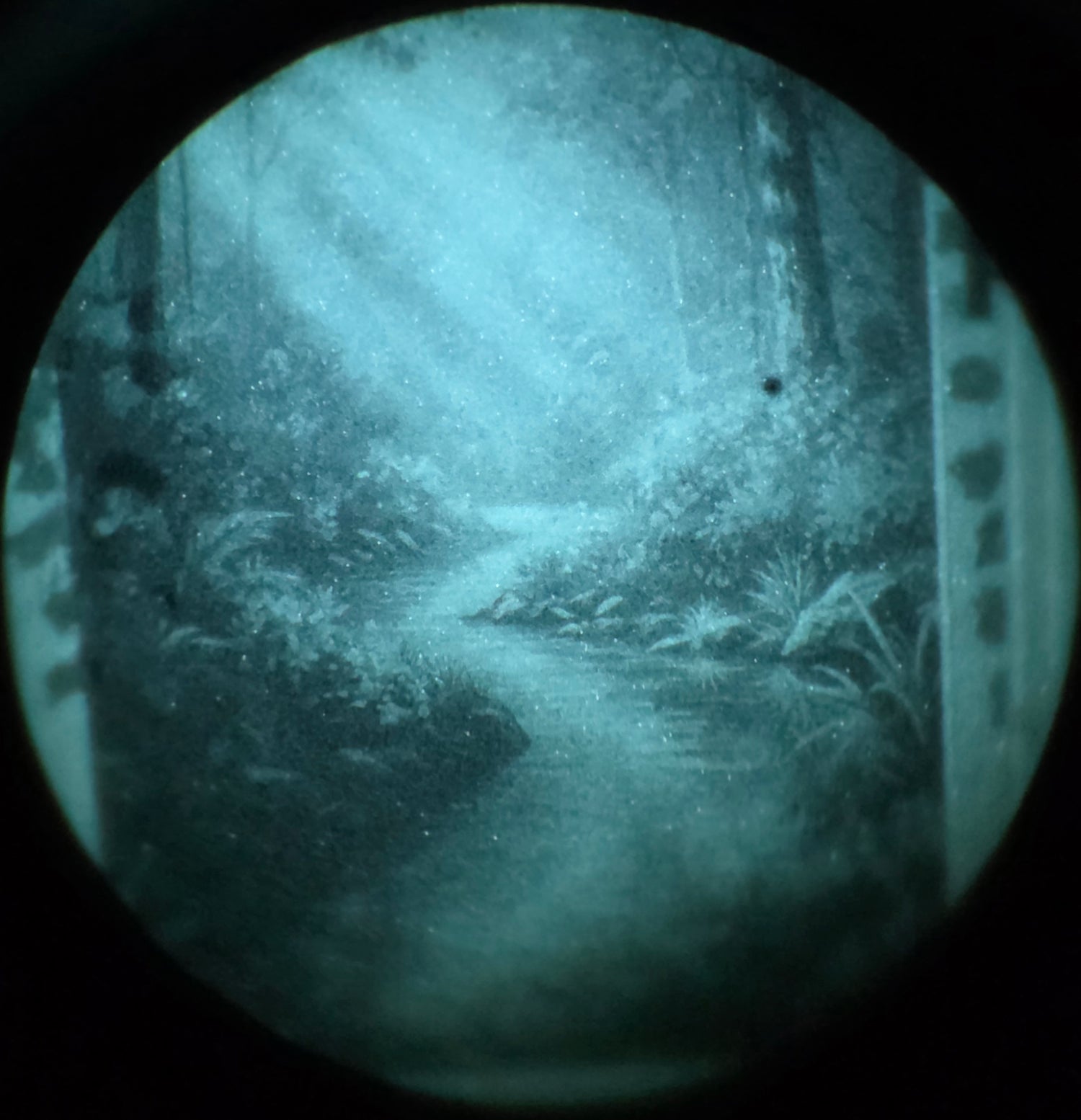

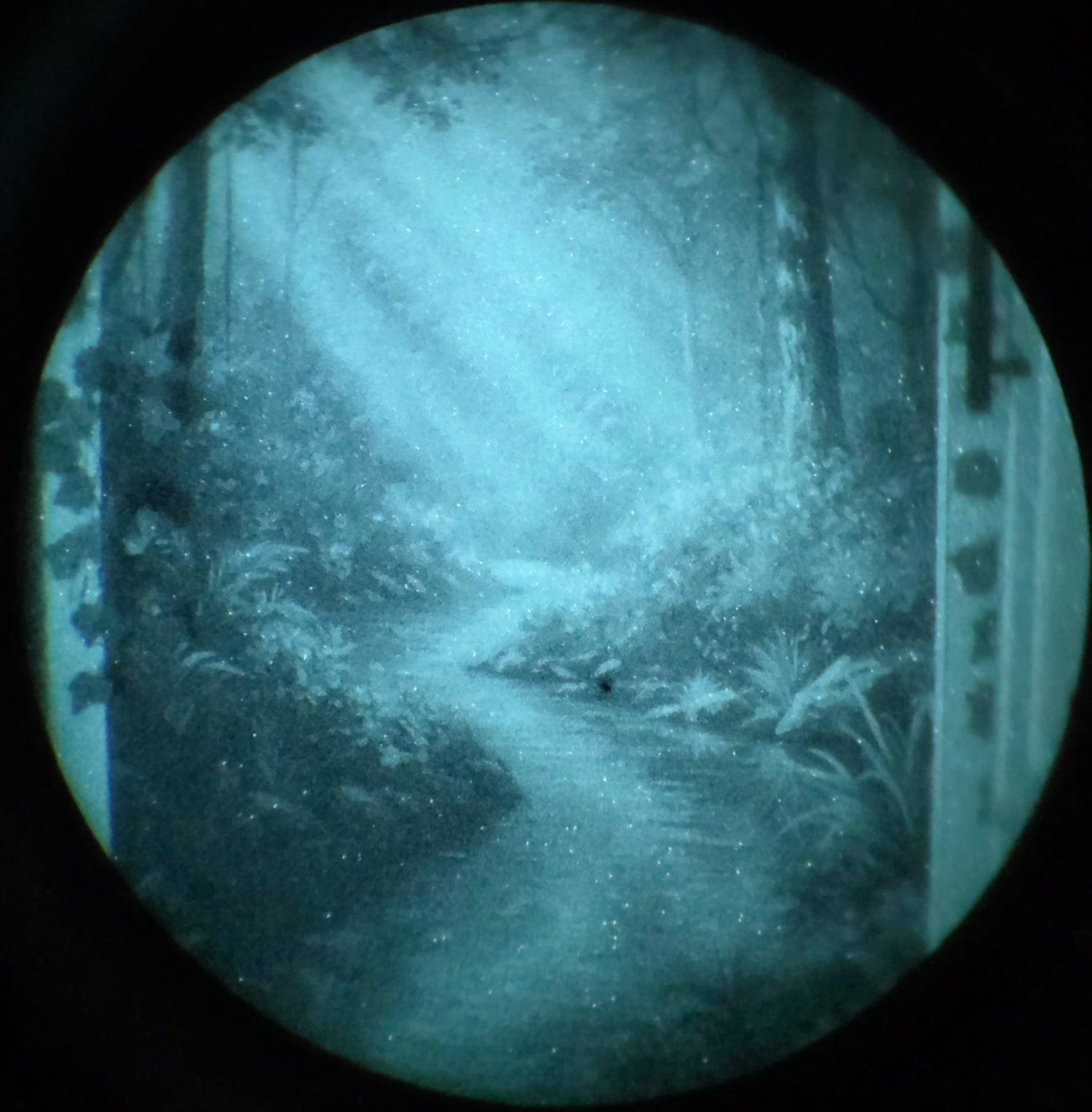

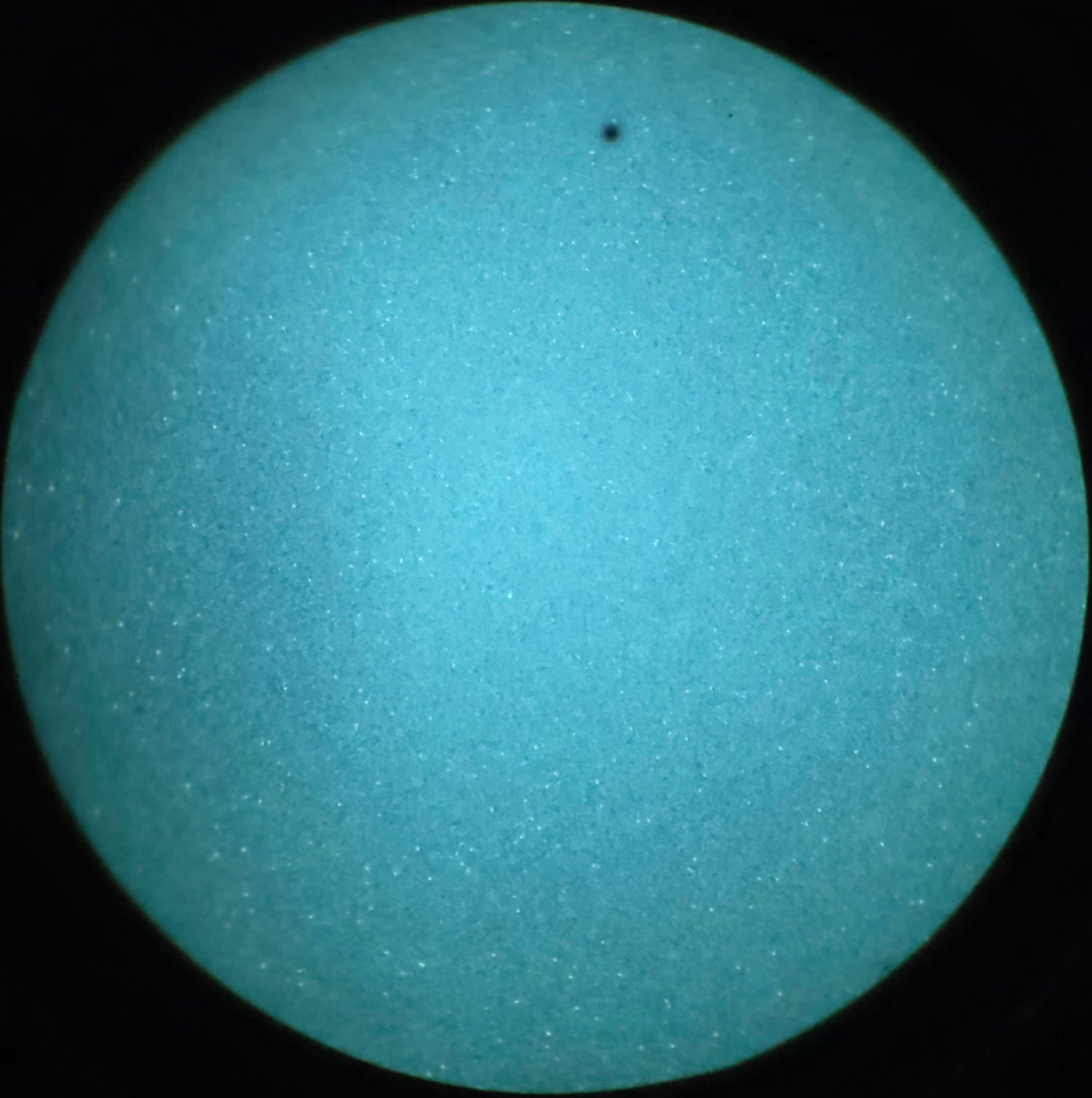

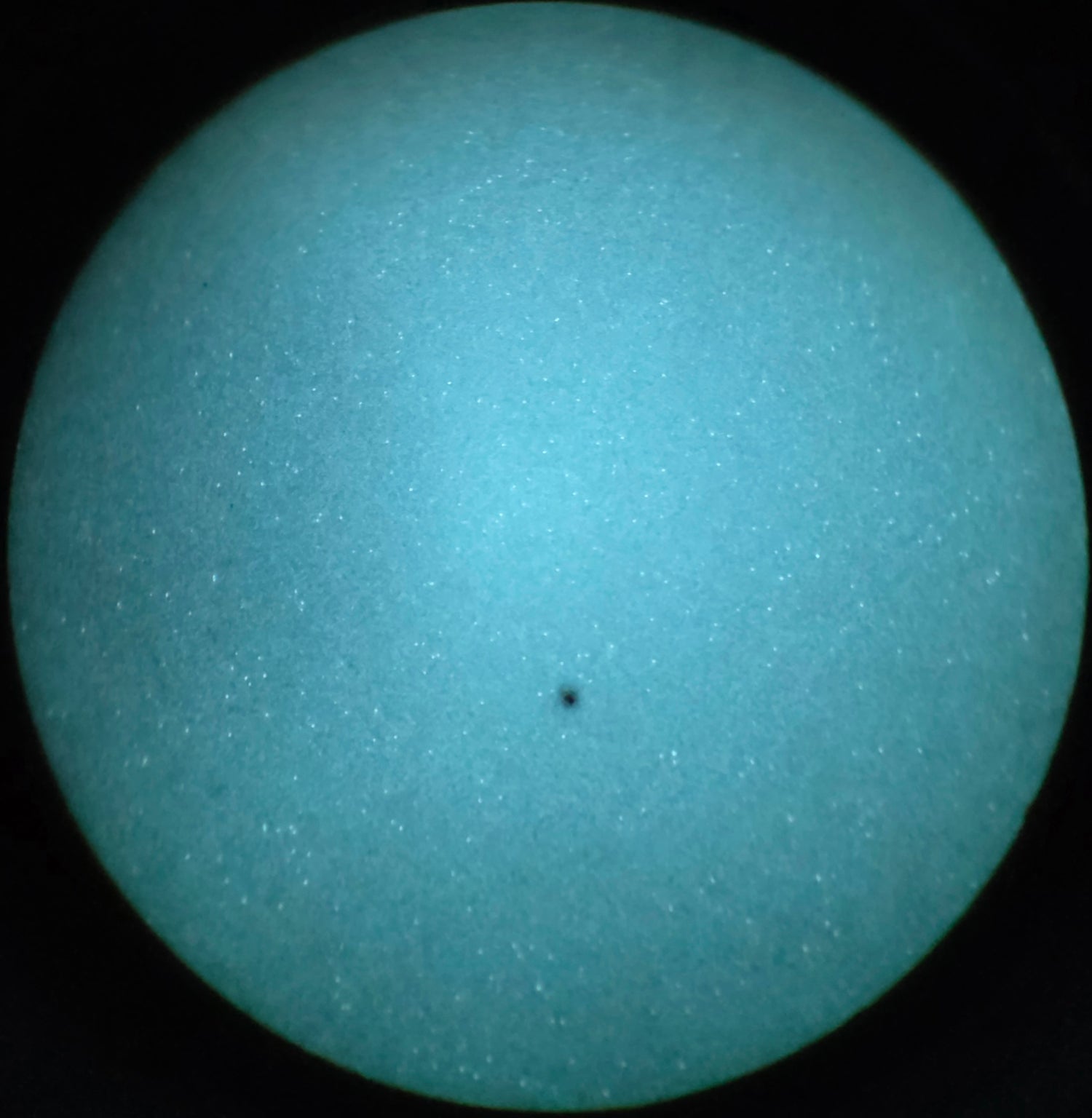

This unit comes equipped with beautiful white phosphor Elbit tubes within, a great general purpose tube for use within many differing lighting conditions.

ANVB Housing Specifications:

POWER SOURCE: (1) CR123 size battery

FOCUS RANGE: 9.8” to infinity

OPERATION TIME: Approximately 25 hours with onboard CR123

MAGNIFICATION: (1X) ONE POWER

FIELD OF VIEW: 40 Degrees with std Mil-spec optics

INTERPUPILLARY ADJUSTMENT: Adjustable IPD

DIOPTER ADJUSTMENT: -6 TO +2

GAIN: Manually adjustable

WEIGHT: 189g housing, 579g (20.4oz) with standard Mil-spec optics

IR ILLUMINATOR: Built in dual focus IR – flood or spot

WATER RESISTANCE:IPX7

IR LED & LOW BATTERY INDICATORS: Yes

INTENSIFIER TUBES: Compatible with MX-11769 (manual gain) and MX-10160 style (no manual gain)

OPTICS: Compatible with PVS-14 style eyepiece and objective

WARRANTY: 10 year NNV standard warranty.

Instructions / Manual

Hold Knob Down 3 Seconds: Power On/Off

1 Tap: LED indicator testing

2 Taps: IR illumination on/off

3 Taps: IR Signaling Standby Mode: Left pod indicator constantly on, IR will be initiated when rotating the knob. The right pod indicator will light up when the IR is on. The gain control will be disabled during the IR Standby Mode. This mode allows the use of sending codes/signaling with IR.

5 Taps: Turn on/off auto-stow feature that toggles power when entire goggle is flipped up or down using mount and auto-shutoff static feature that automatically turns off goggle after a long period of no movement.

7 Taps: Lock the current gain as the maximum gain. Goggle memory will keep the new gain setting as maximum until it is reset to factory.

10 Taps: Reset goggle to factory mode.

Typical lead time of 7 to 14 days.
