MAX-14 dovetail J arm

Regular price $180.00 USD
Regular price Sale price $180.00 USD
Shipping calculated at checkout.

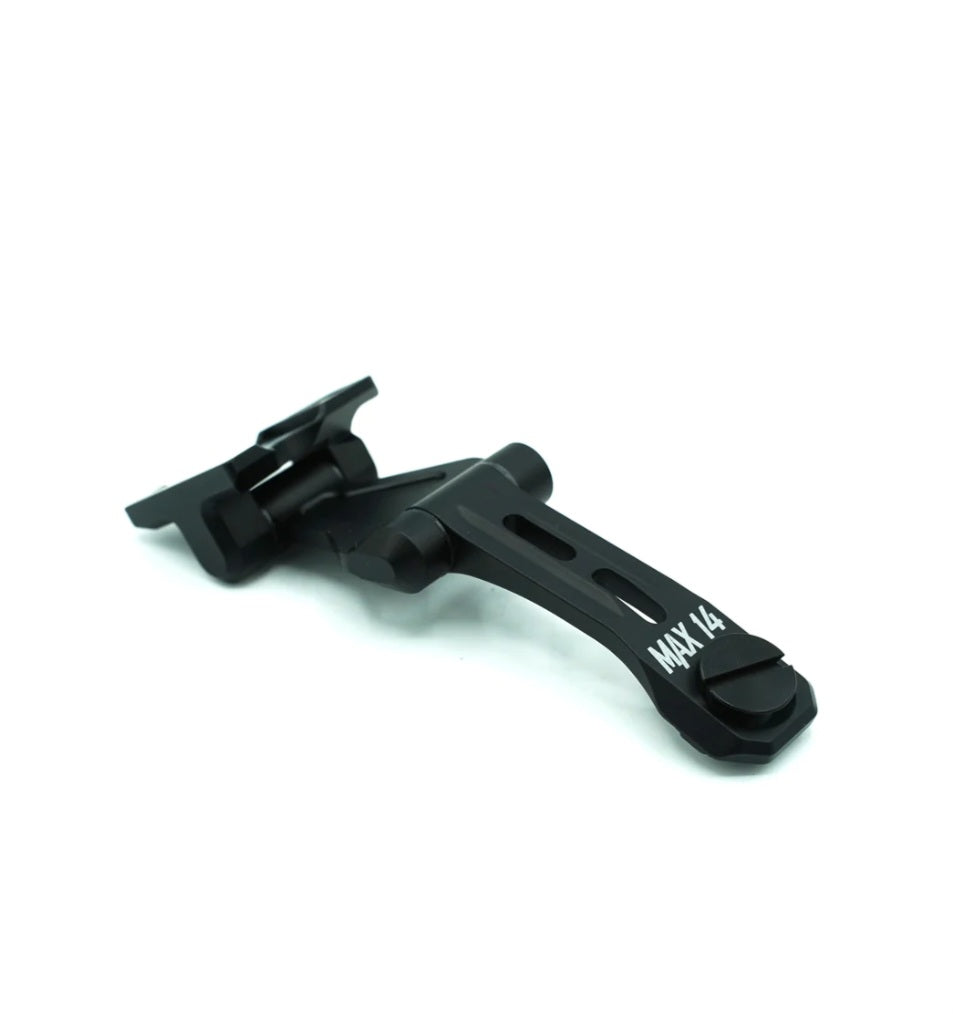

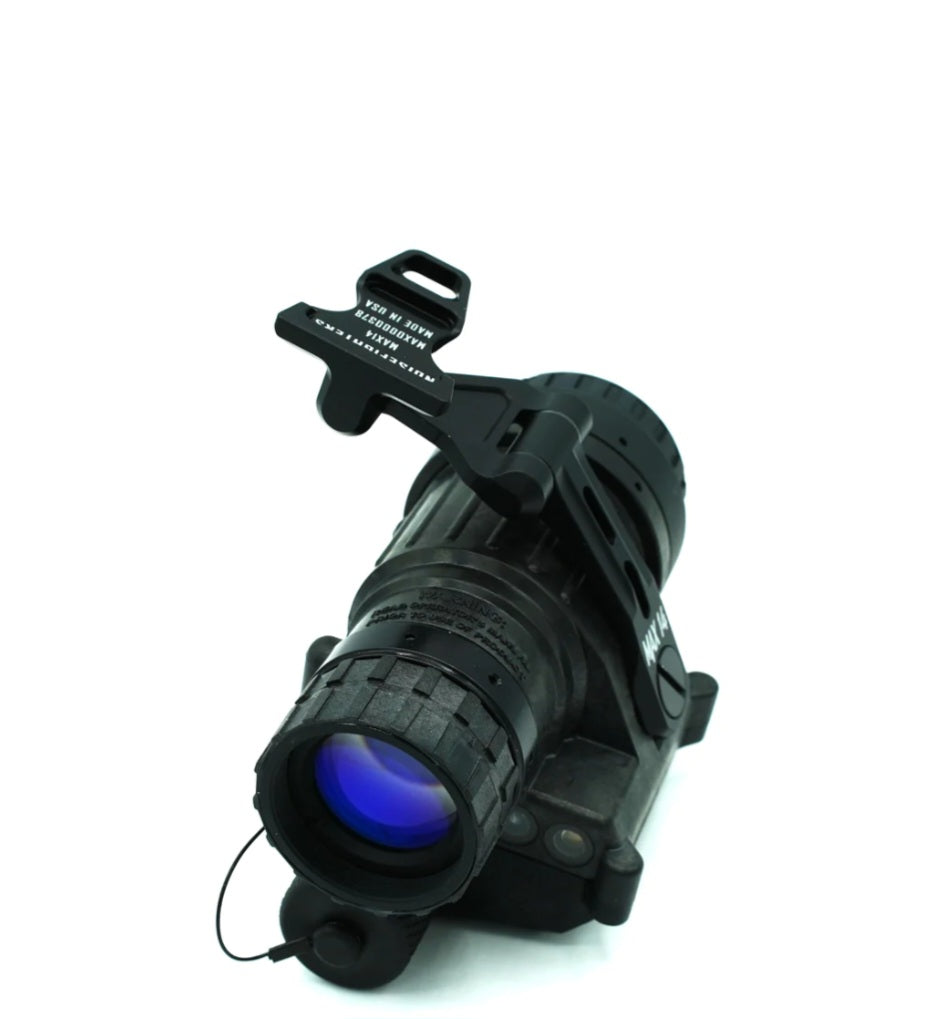

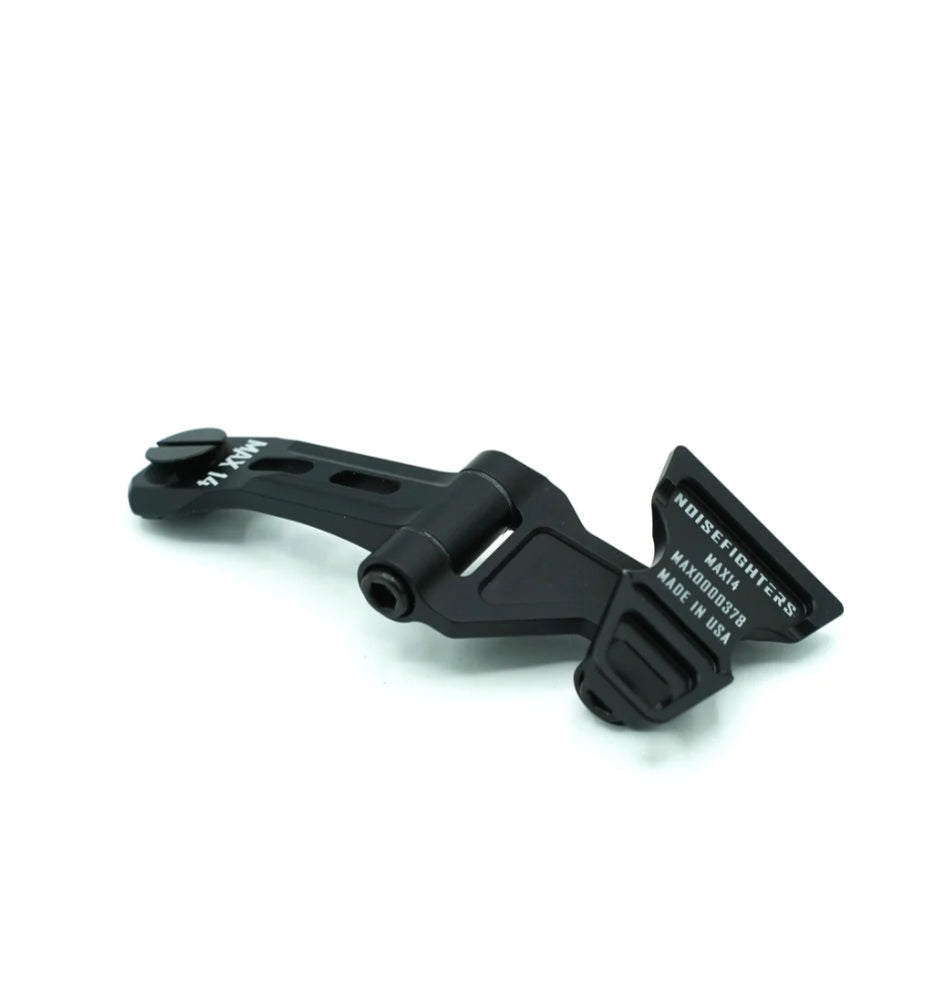

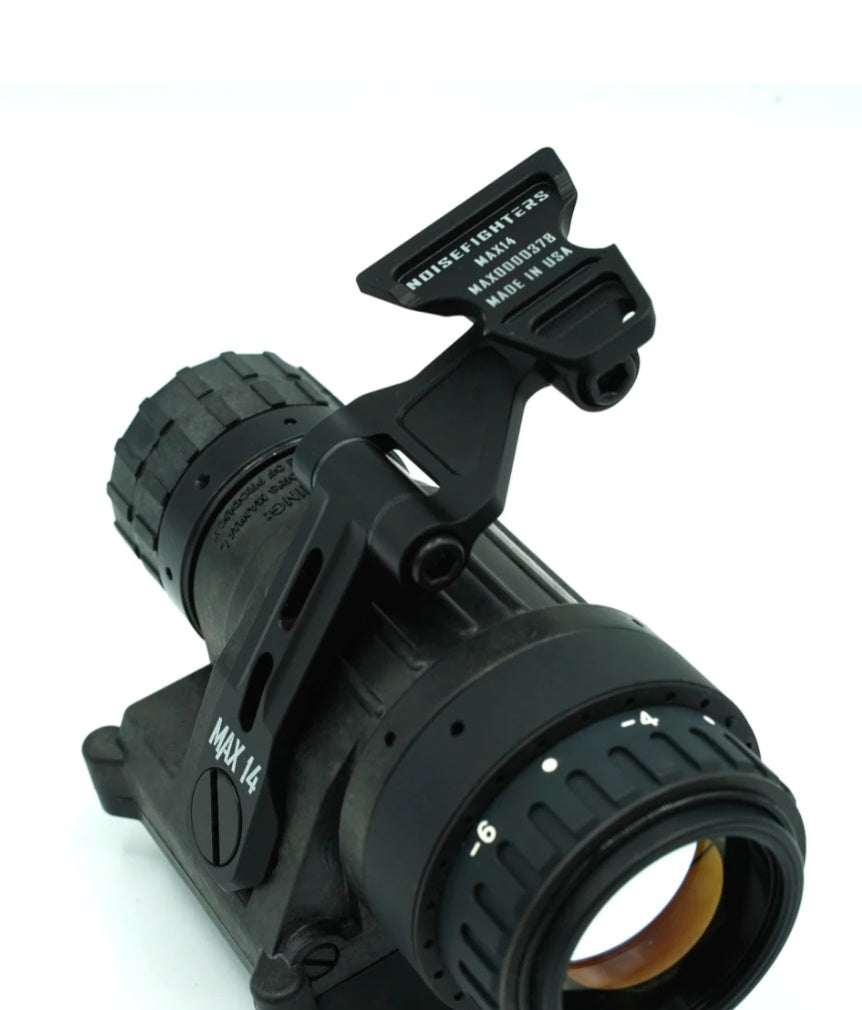

The MAX14™ from Noisefighters is an ultralight and rugged all metal night vision J-arm for PVS-14, Nocturn Industries Tanto, and other night vision monoculars using the standard 1/4 20 interface. The MAX14 PVS-14 J Arm features a rotating knuckle which provides a tight stow against the helmet and for the monocular to be swung away from the eye. At 1.0 oz total, the MAX14 weighs half as much as a polymer milspec PVS-14 J-Arm, but it’s made from the highest-performing 7075-T6 aluminum alloy for industry-leading durability.

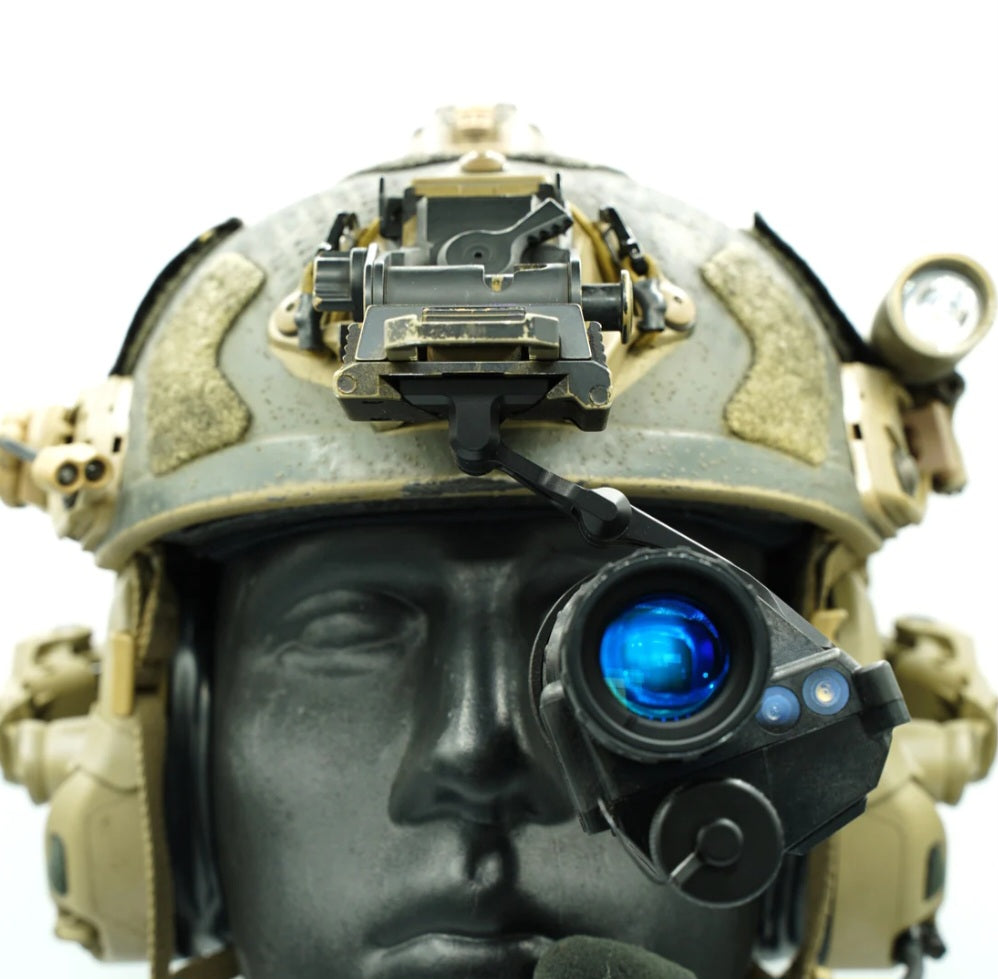

An intuitive, friction-based mechanism allows users to swing their monocular in front of either the left or right eye and perfectly adjust for inter-pupillary distance, while a slight rearward sweep of the inner arm helps position the monocular eyepiece closer to one's eye and provides greater compatibility for those with larger helmets. A tether point is also featured on the rear to keep the entire system secure. Attach a monocular, snap the complete assembly into a dovetail-style helmet mount, like the Wilcox® G24, and enjoy. Introducing the new industry standard in night vision monocular mounting.

A no-questions-asked, transferable lifetime warranty is included. The Noisefighters MAX14 is proudly made and assembled in the U.S.A.



Considerations to account for when using this product:

This arm is NOT COMPATIBLE with horn/bayonet mounts

No auto-shutoff system is integrated. Users must manually turn off the monocular when articulating or flipping up and stowing equipment on top of the helmet.



SPECIFICATIONS:

COMPATIBLE WITH: MILSPEC AN/PVS-14 MONOCULAR, NOCTURN INDUSTRIES UANVM "TANTO" (A SEPARATE ADAPTER IS INCLUDED IN ORDER TO FIT THIS DEVICE), PHOTONIS VYPER-14 CHASSIS FOR AN/PVS-14 MONOCULAR, AB NIGHT VISION MOD3 MONOCULAR (AUTOGAIN VERSION ONLY), KNIGHT’S ARMAMENT M-14 ALLOY CHASSIS FOR AN/PVS-14 MONOCULAR,

HELMET MOUNTING COMPATIBILITY: DOVETAIL

INTERPUPILLARY DISTANCE (IPD) COMPATIBILITY: 55 - 75mm

TOTAL ASSEMBLED WEIGHT OF THIS PRODUCT: 1.0 OZ / 28 g

DIMENSIONS: 3.5 x 1 x 1.25"

ESTIMATED COMBINED WEIGHT WITH A MILSPEC PVS-14 ATTACHED (L3® UNFILMED 11769 TUBE, NO BATTERY, NO EYECUP RETAINING RING, NO RUBBER EYECUP, NO DEMIST SHIELD INSTALLED): 11.9 OZ

ESTIMATED COMBINED WEIGHT WITH NOCTURN INDUSTRIES UANVM "TANTO" (PHOTONIS IMAGE INTENSIFIERS, RPO 3.0 LENSES, NO BATTERY, NO EYECUP RETAINING RING, NO RUBBER EYECUP, NO DEMIST SHIELD INSTALLED): 8.2 OZ

WARRANTY: LIFETIME, TRANSFERABLE.

*Lead time of 5 to 10 days is typical.*
