nicksnightvision

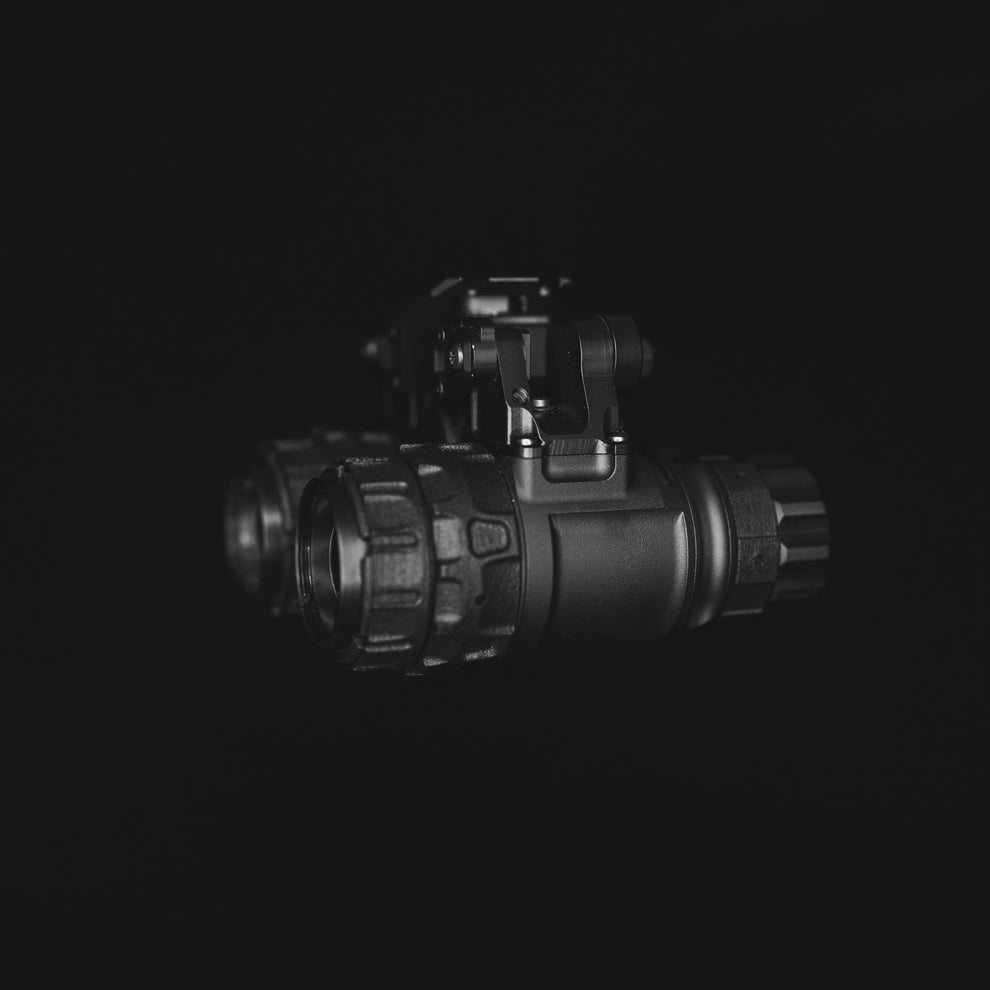

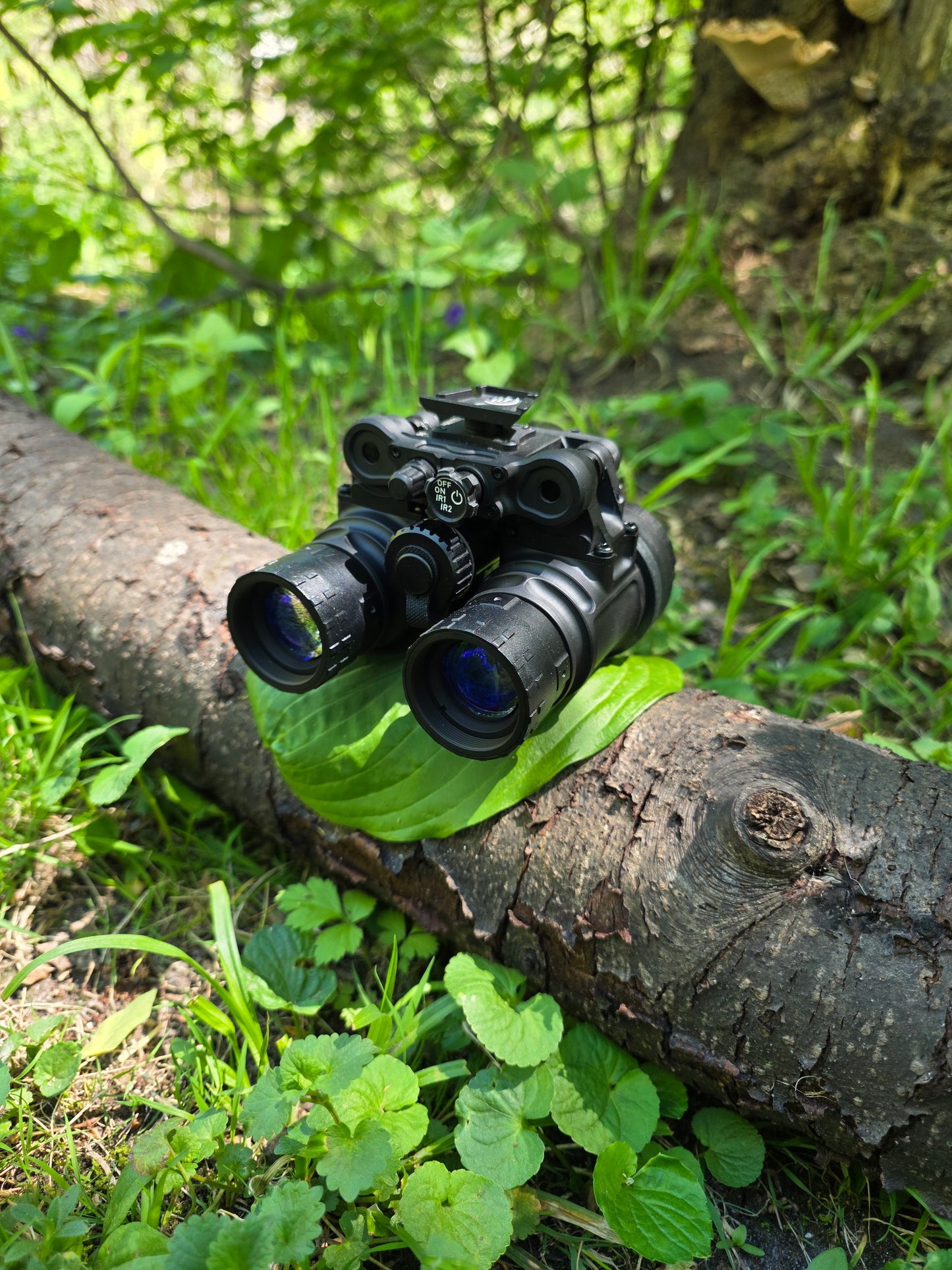

MH-1 gen 3 Elbit type

Regular price $9,600.00 USD
Regular price Sale price $9,600.00 USD
Shipping calculated at checkout.

The MH-1 is the latest housing innovation from Low Light Innovations and the pinnacle of their housing line currently.

Crafted from aerospace-grade magnesium and titanium alloys, the MH-1 is a perfect blend of ruggedness and lightweight design, tipping the scales at just 15.3 ounces in its lightest configuration.

The MH-1 is truly modular, allowing users to swap power supplies in minutes, choosing between CR123A, AA, and more. Its modularity extends to the ability to split the device into two monoculars using our new Modular Bridge System (MBS). What sets the MH-1 apart is its manual gain feature, which can be achieved via direct plug-in without any soldering, ensuring your tube's warranty remains intact.



 FEATURE LIST:



Rotational pod shutoff



Manual gain control (4 pin plug-in)



Dual power IR illumination



IPD stops



Modular pods (Ability to split into monos)



Onboard power (Modular)



External power (Modular



Modular mounting platforms (Dovetail/Ball detent)



Adjustable pod tension







Customize your MH-1 housing with your choice of colors and configurations. Choose from black, FDE, ranger green, or grey, we also offer three different glass types, RPO UL Optics, Mil-Spec Optics and boomslang 50 degree optics depending on your needs. Need only PM to choose.







SPECIFICATIONS:



POWER SOURCE: MODULAR

FOCUS RANGE: 9.8” TO INFINITY

OPERATION TIME: APPROXIMATELY 25-90 HOURS

MAGNIFICATION: (1X) ONE POWER

FIELD OF VIEW: 40 DEGREES

INTERPUPILLARY ADJUSTMENT: 51 TO 78MM

DIOPTER ADJUSTMENT: -6 TO +2

EYE RELIEF: 25MM

WEIGHT: 434g

WATER RESISTANCE: SUBMERSIBLE TO 66 FT 2 HRS

INTENSIFIER TUBES: COMPATIBLE WITH MX-10160/11769 OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE



Made in the USA 🇺🇸



*Lead time of 7 to 15 days is typical.*
